True
KCM 25 SS/ KCM 25 SS-2

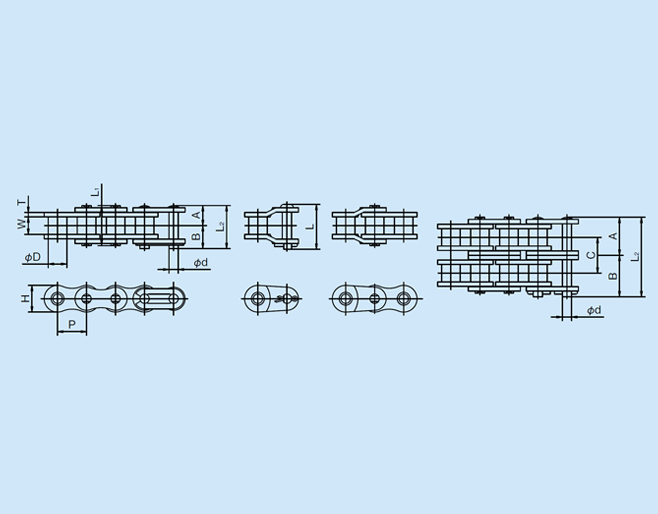

Pitch P: 6.35
Width between Inner Plates W: 3.18
Roller Dia.D: *3.30
Pin: Dia.d: 2.31

      A: 3.82/ 7.03
      B: 4.83/ 8.02
      L1: 7.65/ 14.05
      L2: 8.65/ 15.05

Offset L: −
Link Plate: Thickness T: 0.75    Height H: 5.8
Transverse Pitch C: 6.4
Max. Allowable Load kN (kgf): 0.12 (12)/ 0.21 (21)
Approx. Weight (kg/m):0.14/ 0.26
Links of 1 unit: 480


KCM 25 SS/ KCM 25 SS-2
KCM 16B SS/ KCM 16B SS-2

Pitch P: 25.40
Width between Inner Plates W: 17.02
Roller Dia.D: 15.88
Pin: Dia.d: 8.28

      A: 17.60/ 33.55
      B: 20.70/ 36.65
      L1: 35.20/ 67.10
      L2: 38.30/ 70.20

Offset L:  41.65/  73.55
Link Plate: Thickness T:  4.0 (3.2)    Height H: 19.7
Transverse Pitch C: 31.88
Max. Allowable Load kN (kgf): 1.77 (180)/ 3.00 (306)
Approx. Weight (kg/m): 2.63/ 5.19
Links of 1 unit: 120

KCM 16B SS/ KCM 16B SS-2
KCM 40 SS/ KCM 40 SS-2

Pitch P: 12.70
Width between Inner Plates W: 7.95
Roller Dia.D: 7.92
Pin: Dia.d: 3.97

      A: 8.07/ 15.27
      B: 9.58/ 16.78
      L1: 16.15/ 30.55
      L2: 17.65/ 32.05

Offset L: 19.05/ 33.45
Link Plate: Thickness T: 1.5    Height H: 11.7
Transverse Pitch C: 14.4
Max. Allowable Load kN (kgf): 0.44 (45)/ 0.76 (77)
Approx. Weight (kg/m): 0.63/ 1.19
Links of 1 unit: 240


KCM 40 SS/ KCM 40 SS-2
KCM 04 SS

Pitch P: 6.00
Width between Inner Plates W: 2.80
Roller Dia.D: 4.00
Pin: Dia.d: 1.85

      A: 3.23
      B: 4.12
      L1: 6.45
      L2: 7.35

Offset L:−
Link Plate: Thickness T: 0.6    Height H: 4.9
Transverse Pitch C: −
Max. Allowable Load kN (kgf): 0.06 (6)
Approx. Weight (kg/m):0.11
Links of 1 unit: 834


KCM 04 SS
KCM 60 SS/ KCM 60 SS-2

Pitch P: 19.05
Width between Inner Plates W: 12.70
Roller Dia.D: 11.91
Pin: Dia.d: 5.96

      A: 12.70/ 24.10
      B: 14.20/ 25.60
      L1: 25.40/ 48.20
      L2: 26.90/ 49.70

Offset L: 29.55/ 52.35
Link Plate: Thickness T: 2.4    Height H: 17.5
Transverse Pitch C: 22.8
Max. Allowable Load kN (kgf): 1.03 (105)/ 1.76 (179)
Approx. Weight (kg/m): 1.50/ 2.95
Links of 1 unit: 160


KCM 60 SS/ KCM 60 SS-2
KCM 12B SS/ KCM 12B SS-2

Pitch P: 19.05
Width between Inner Plates W: 11.68
Roller Dia.D: 12.07
Pin: Dia.d: 5.72

      A: 11.05/ 20.77
      B: 12.55/ 22.28
      L1: 22.10/ 41.55
      L2: 23.60/ 43.05

Offset L:  26.30/ 45.75
Link Plate: Thickness T: 1.8    Height H: 16.0
Transverse Pitch C: 19.46
Max. Allowable Load kN (kgf):1.00 (105)/ 1.76 (179)
Approx. Weight (kg/m): 1.25/ 2.44
Links of 1 unit: 160

KCM 12B SS/ KCM 12B SS-2
KCM 50 SS/ KCM 50 SS-2

Pitch P: 15.875
Width between Inner Plates W: 9.53
Roller Dia.D: 10.16
Pin: Dia.d: 5.09

      A: 10.20/ 19.25
      B: 11.60/ 20.68
      L1: 20.40/ 38.50
      L2: 21.80/ 39.90

Offset L: 23.05/ 41.15
Link Plate: Thickness T: 2.0    Height H: 14.6
Transverse Pitch C: 18.1
Max. Allowable Load kN (kgf): 0.69 (70)/ 1.17 (119)
Approx. Weight (kg/m): 1.04/ 2.01
Links of 1 unit: 192


KCM 50 SS/ KCM 50 SS-2
KCM 35 SS/ KCM 35 SS-2

Pitch P: 9.525
Width between Inner Plates W: 4.78
Roller Dia.D: *5.08
Pin: Dia.d: 3.59

      A: 5.77/ 10.82
      B: 7.13/ 12.18
      L1: 11.55/ 21.65
      L2: 12.90/ 23.00

Offset L: 13.85/ 23.95
Link Plate: Thickness T: 1.25    Height H: 8.8
Transverse Pitch C: 10.1
Max. Allowable Load kN (kgf): 0.26 (27)/ 0.45 (46)
Approx. Weight (kg/m): 0.33/ 0.65
Links of 1 unit: 320


KCM 35 SS/ KCM 35 SS-2
KCM 05B SS/ KCM 05B SS-2

Pitch P: 8.00
Width between Inner Plates W: 3.00
Roller Dia.D: 5.00
Pin: Dia.d: 2.31

      A: 3.82/ 6.65
      B: 4.83/ 7.65
      L1: 7.65/ 13.30
      L2: 8.65/ 14.30

Offset L:−
Link Plate: Thickness T: 0.75    Height H: 7.1
Transverse Pitch C: 5.64
Max. Allowable Load kN (kgf): 0.12 (12)/ 0.21 (21)
Approx. Weight (kg/m): 0.18/ 0.34
Links of 1 unit: 626


KCM 05B SS/ KCM 05B SS-2
KCM 10B SS/ KCM 10B SS-2

Pitch P: 15.875
Width between Inner Plates W: 9.65
Roller Dia.D: 10.16
Pin: Dia.d: 5.08

      A: 9.58/ 17.87
      B: 11.02/ 19.33
      L1: 19.15/ 35.75
      L2: 20.60/ 37.20

Offset L: 21.95/ 38.55
Link Plate: Thickness T: 1.65    Height H: 14.6
Transverse Pitch C: 16.59
Max. Allowable Load kN (kgf): 0.70 (70)/ 1.17 (119)
Approx. Weight (kg/m): 0.94/ 1.84
Links of 1 unit: 192

KCM 10B SS/ KCM 10B SS-2
KCM 08B SS/ KCM 08B SS-2

Pitch P: 12.70
Width between Inner Plates W: 7.75
Roller Dia.D: 8.51
Pin: Dia.d: 4.45

      A: 8.17/ 15.12
      B: 9.58/ 16.53
      L1: 16.35/ 30.25
      L2: 17.75/ 31.65

Offset L: 19.30/ 33.20
Link Plate: Thickness T: 1.5    Height H: 11.7
Transverse Pitch C: 13.92
Max. Allowable Load kN (kgf): 0.44( 45)/ 0.76( 77)
Approx. Weight (kg/m): 0.65/ 1.25
Links of 1 unit: 240


KCM 08B SS/ KCM 08B SS-2
KCM 100 SS/ KCM 100 SS-2

Pitch P: 31.75
Width between Inner Plates W: 19.05
Roller Dia.D: 19.05
Pin: Dia.d: 9.54

      A: 20.20/ 38.10
      B: 23.15/ 41.05
      L1: 40.40/ 76.20
      L2: 43.35/ 79.15

Offset L: 44.05/ 79.85
Link Plate: Thickness T: 4.0    Height H: 28.9
Transverse Pitch C: 35.8
Max. Allowable Load kN (kgf): 2.55 (260)/ 4.33 (442)
Approx. Weight (kg/m): 4.09/ 8.10
Links of 1 unit: 96


KCM 100 SS/ KCM 100 SS-2
KCM 06B SS/ KCM 06B SS-2

Pitch P: 9.525
Width between Inner Plates W: 5.72
Roller Dia.D: 6.35
Pin: Dia.d: 3.28

      A: 6.10/ 11.22
      B: 7.50/ 12.63
      L1: 12.20/ 22.45
      L2: 13.60/ 23.85

Offset L: 15.15/ 25.40
Link Plate: Thickness T: 1.3 (1.0)    Height H: 8.1
Transverse Pitch C: 10.24
Max. Allowable Load kN (kgf): 0.26( 27)/ 0.45( 46)
Approx. Weight (kg/m): 0.39/ 0.77
Links of 1 unit: 320


KCM 06B SS/ KCM 06B SS-2
